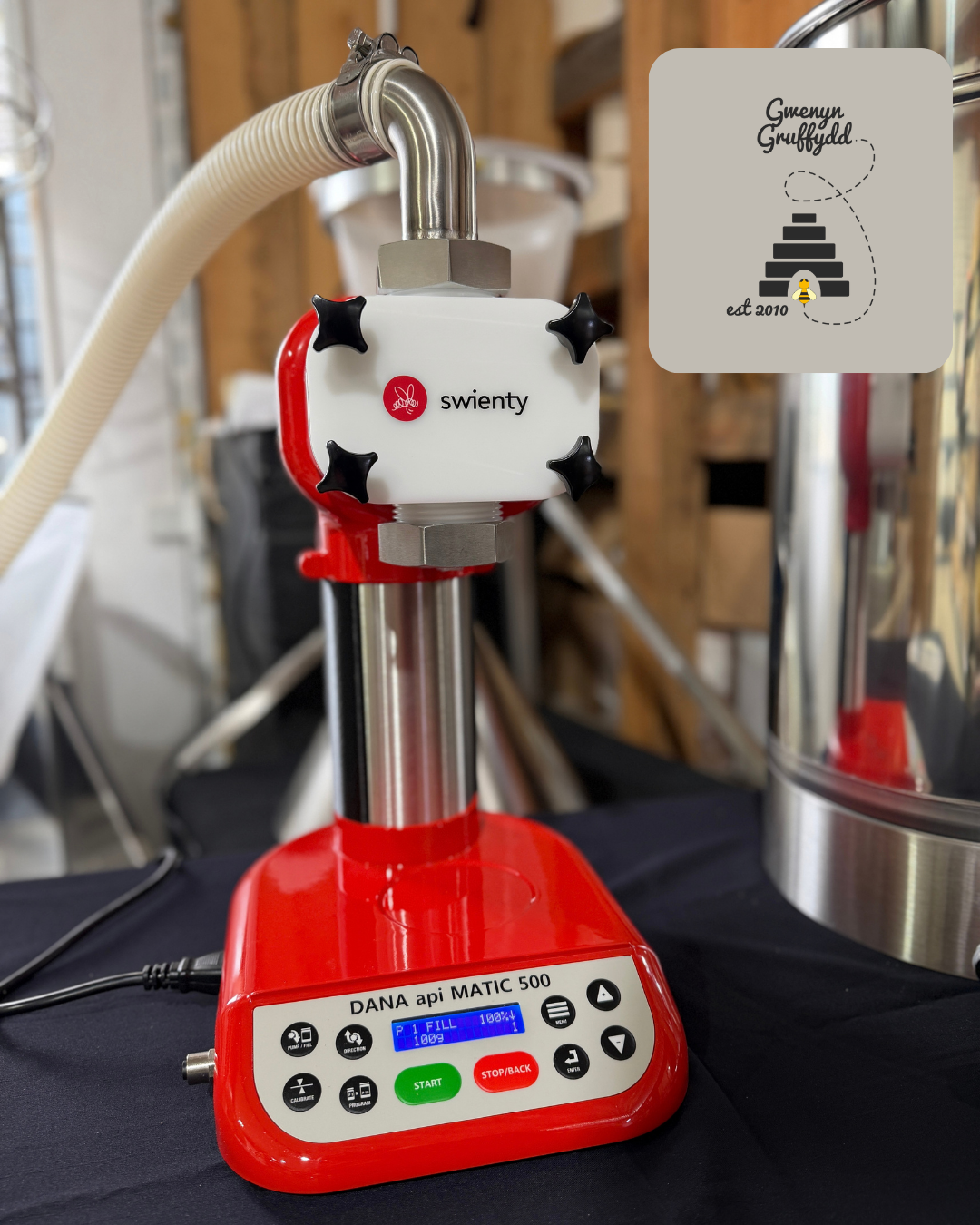

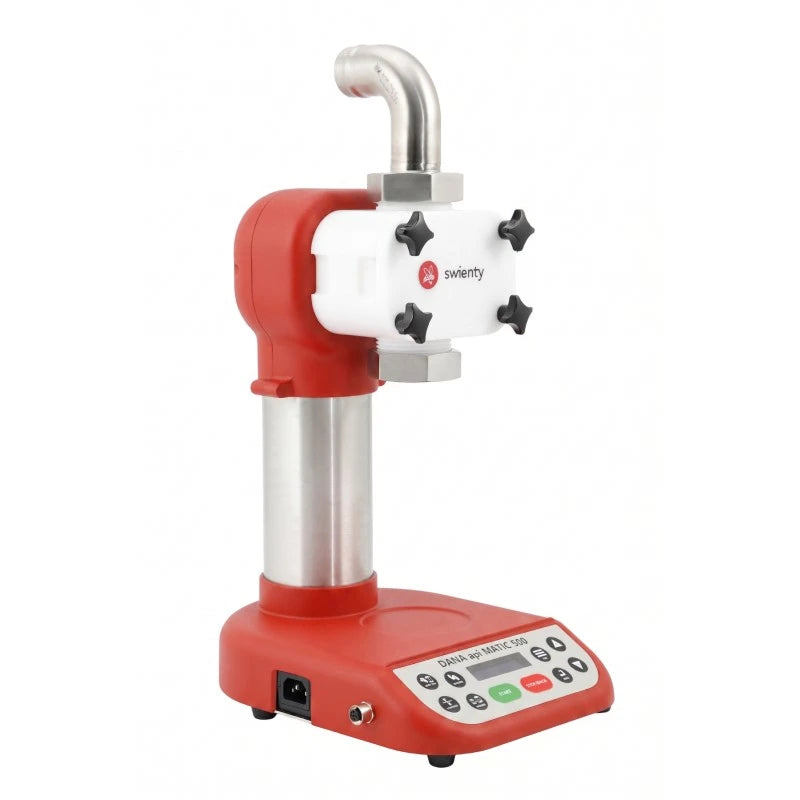

Swienty DANA® api MATIC 500 Honey Filling & Bottling Machine

Professional honey filling, designed for smaller-scale beekeepers

The Swienty DANA® api MATIC 500 is a compact, professional honey filling and bottling machine developed specifically for smaller-scale and hobby beekeepers who want to move on from filling honey jars manually.

Designed and manufactured by Swienty in Denmark, the DANA api MATIC 500 brings the precision, reliability and professional technology of the established DANA honey filling machine range into a compact unit suitable for honey producers processing up to approximately 1 tonne of honey per year.

Its computer-controlled gear pump provides accurate, repeatable dosing from 10g upwards, with a precision of ±2g. More than 20 filling programmes can be stored, making it particularly useful if you regularly fill several different jar sizes.

Simply save your commonly used filling settings and recall them when changing between different jars or fill quantities.

Self-priming – draw honey directly from your tank or bucket

One of the key advantages of the DANA api MATIC 500 is its self-priming pump.

Rather than having to lift honey into a hopper above the filling machine, the supplied 1.5 metre, 38mm (1½") hose allows the machine to draw honey directly from a suitable bucket or tank positioned at a lower level.

This creates a more comfortable and efficient honey bottling setup, reducing the repeated lifting and handling associated with manual filling.

The compact design also makes the DANA api MATIC 500 particularly suitable for smaller honey rooms and processing areas where space is at a premium.

Accurate filling with less honey wasted

Accurate dosing helps reduce unnecessary overfilling.

When hundreds or thousands of jars are being filled, even a few additional grams of honey in every jar can quickly add up. The DANA api MATIC 500 delivers consistent, programmed doses with a specified precision of ±2g, helping to minimise overfilling and reduce product waste.

Filling quantities start from just 10g, with dosing available in grams (g), millilitres (ml) or ounces (oz).

Save 20+ filling programmes

If you bottle honey into several different jar sizes, you don't need to programme the machine from scratch every time.

The DANA api MATIC 500 can store more than 20 programmable filling settings, allowing you to save the settings used for your different jar sizes and quickly recall them for future bottling runs.

For example, settings could be stored for mini honey jars, standard retail jars and larger jars, making changing between different products considerably quicker.

Please note: the DANA api MATIC 500 is a programmable dosing machine rather than an integrated trade-approved weighing scale. A % of filled jars should be checked using appropriate weighing equipment as part of your normal packing and weight-control process (normally 1-3%)

Key Features

• Professional honey filling and bottling machine for smaller-scale honey producers
• Developed for beekeepers producing up to approximately 1 tonne of honey per year
• Computer-controlled gear pump
• Self-priming – draws honey directly from a suitable bucket or tank
• Filling quantities from 10g upwards
• ±2g dosing precision
• 20+ programmable filling settings
• Save settings for different honey jar sizes
• Pump capacity of approximately 150kg/hour
• 38mm / 1½" hose system
• 1½" BS hose connections on both sides of the pump
• Compact design for smaller honey-processing areas
• Approximately 8.5kg machine weight
• Hygienic construction designed to be easy to clean
• Designed to reduce lifting and improve bottling workflow
• Modular and repairable construction for a long service life
• Designed and manufactured by Swienty in Denmark

Technical Specification

Machine type: Computer-controlled gear pump
Recommended production scale: Up to approximately 1 tonne of honey per year
Filling capacity: From 10g upwards
Weight units: ml / g / oz
Precision: ±2g
Pump capacity: Approx. 150kg/hour
Programmes: 20+ programmable options
Hose diameter: 38mm / 1½"
Connections: 1½" BS hose connection on both sides of the pump
Power supply: 90–264VAC, 50/60Hz
Power consumption: 230W
Sound pressure level: <70 dB(A)
Weight: Approx. 8.5kg
Dimensions: 41.5 × 22 × 29cm
Manufacturer: Swienty A/S
Designed & manufactured: Denmark

What's Included?

The DANA api MATIC 500 is supplied with:

• 1 × 0–60ml dosing syringe
• 2 × 1½" BS union nuts
• 1 × complete valve with Ø20 cross-cut nozzle
• 1 × 1.5 metre, 38mm / 1½" hose
• 1 × 1½" bent hose nozzle
• 1 × 1½" hose clamp
• Power cable

Everything above is included with the standard machine.

Optional Accessories

The following accessories are available separately:

Foot Pedal
Allows the filling cycle to be activated by foot, leaving both hands available for handling jars.

10 Litre Hopper
Available for producers who prefer a hopper-fed honey filling setup.

Height-Adjustable Platform with Sensor
An optional upgrade for a more automated filling arrangement.

Please note that these accessories are not included with the standard DANA api MATIC 500 and are available separately.

The small professional honey filling machine

For many smaller honey producers, there is a significant gap between filling every jar manually and investing in a larger commercial honey bottling machine.

The DANA api MATIC 500 has been developed specifically to bridge that gap.

It provides a compact entry into professional honey filling, combining repeatable dosing, stored filling programmes and a self-priming pump without the footprint of a larger filling line.

At only approximately 41.5 × 22 × 29cm and weighing around 8.5kg, the machine can be used in relatively small honey-processing areas and easily moved when required.

For hobby beekeepers expanding their honey production, sideline beekeepers or small commercial honey producers, the DANA api MATIC 500 offers an opportunity to improve bottling efficiency while retaining a compact and straightforward setup.

Why Swienty?

Swienty is a trusted Danish manufacturer of professional beekeeping and honey-processing equipment, with its DANA range of honey filling machines used by beekeepers and honey producers internationally.

The DANA api MATIC 500 has been designed to bring Swienty's professional honey-filling technology to smaller-scale producers who do not require the capacity of a larger DANA filling machine.

Its design focuses on precision, hygiene, durability, ease of use and a compact footprint, while its modular and repairable construction is intended to provide a long working life.

Gwenyn Gruffydd is a longstanding UK Swienty distributor, supplying Swienty equipment and professional honey-processing machinery to hobby, sideline and commercial beekeepers.

Pre-Order – First UK Stock Expected Early December 2026 - Secure yours now with a 50% deposit.

The new Swienty DANA api MATIC 500 is now available to pre-order from Gwenyn Gruffydd.

We expect our first UK delivery in early December 2026.

As a trusted and longstanding UK Swienty distributor, Gwenyn Gruffydd has been selected by Swienty to receive one of the first DANA api MATIC 500 machines in the UK.

A fully functioning machine is also be available to see in our new beekeeping equipment showroom in West Wales, giving customers the opportunity to see the DANA api MATIC 500 in operation.

Pre-ordering reserves a machine from our incoming allocation.

Please note that expected delivery dates are estimates and may be subject to change.

Need Help Choosing a Honey Filling Machine?

Buying your first professional honey filling machine can be a significant step.

If you're unsure whether the DANA api MATIC 500 is right for your honey production, please contact the Gwenyn Gruffydd team.

We can discuss your production volume, jar sizes and current bottling setup and help you understand the differences between the DANA api MATIC 500 and the larger Swienty DANA honey filling machines.
