CFM Carl Fritz Special Series Premium Honey Straining System – 50kg Stainless Steel Set

Complete premium stainless steel honey straining system from Carl Fritz, now upgraded with a larger 50kg filling tank.

• Complete all-in-one stainless steel honey filtration bundle
• New larger 50kg capacity filling tank
• Coarse and fine filtration for exceptionally clean honey
• Large fine-filter surface helps prevent clogging and maintain honey flow
• High-quality stainless steel construction
• German-made Carl Fritz honey processing equipment

The CFM Carl Fritz Special Series Honey Straining System (50kg) is a premium, German-manufactured stainless steel honey filtering system designed to provide efficient, high-quality filtration when processing extracted honey.

This updated Special Series replaces the previous 35kg version and now incorporates a larger 50kg filling tank, together with Carl Fritz's stainless steel coarse filter and large conical fine filter.

The large surface area of the conical fine filter helps prevent the mesh from becoming clogged during filtration, as wax particles remain floating towards the top while filtered honey continues to flow through the system.

Manufactured from stainless steel, the complete system provides a durable, hygienic and easy-to-clean solution for beekeepers looking for a professional-quality honey filtering setup.

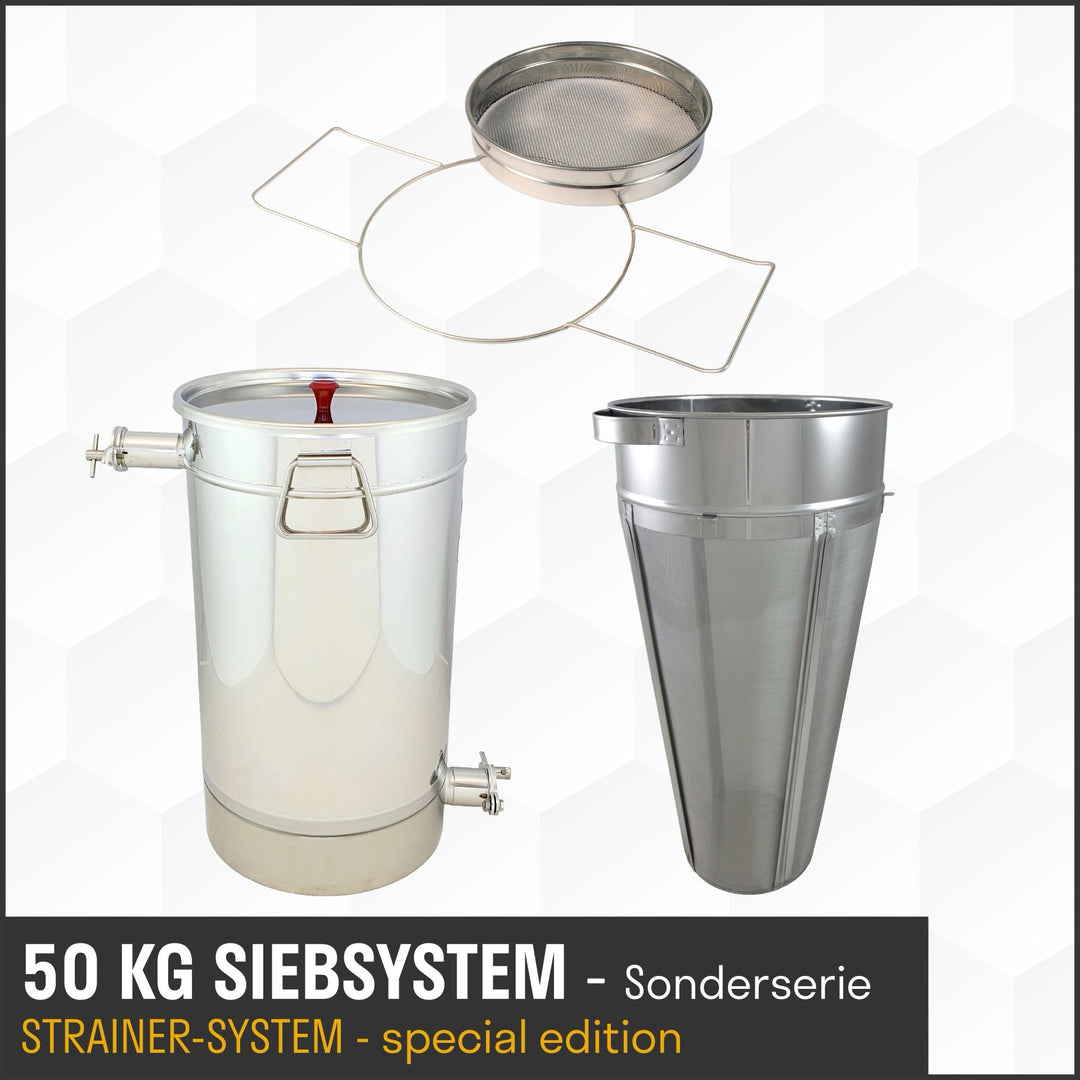

What's Included in the Set

CFM 50kg Stainless Steel Filling Tank with Secondary Upper Valve & Loose Lid

• Capacity: 50kg
• Internal tank diameter: 30cm
• Butt-jointed construction with gap-free welded base
• Carrying handles
• Sloped tank bottom directs honey towards the outlet
• Lower outlet: 1½" honey gate valve, welded flush with the bottom
• Secondary upper/overflow outlet: honey gate valve with 36mm clear opening
• Loose stainless steel lid
• Material: Stainless steel
• Height: 55cm

CFM Conical Fine Filter with Support Bracket

The large filtration surface helps prevent the filter mesh from clogging, with wax particles remaining floating towards the top of the filter.

• Mesh size: 0.5mm
• Height: 60cm
• Top diameter: 30cm
• Bottom diameter: 17.6cm
• Material: Stainless steel
• Includes support bracket

CFM Coarse Filter

Positioned above the fine filter to remove larger pieces of wax and debris before the honey reaches the finer filtration stage.

• Diameter: approx. 22cm
• Mesh size: 1.5mm
• Material: Stainless steel

CFM Support Bracket for Coarse Filter

• Stainless steel construction
• Holds the coarse filter securely in position above the fine filter

Dimensions & Specification

• Filling tank capacity: 50kg
• Tank diameter: 30cm
• Tank height: 55cm
• Fine filter mesh: 0.5mm
• Fine filter height: 60cm
• Fine filter diameter: 30cm top / 17.6cm bottom
• Coarse filter diameter: approx. 22cm
• Coarse filter mesh: 1.5mm
• Overall height of complete assembled system: 63.5cm
• Material: Stainless steel
• Carl Fritz product number: 5309185-SM

A Professional Honey Filtering System

For beekeepers wanting to move beyond basic nylon or plastic strainers, the Carl Fritz Special Series provides a robust stainless steel system designed for repeated honey harvests.

The combination of coarse and fine filtration removes larger wax particles first before the honey passes through the 0.5mm conical fine filter, helping achieve clean, well-filtered honey while maintaining an efficient flow.

The new 50kg capacity also makes this updated system particularly useful for beekeepers processing larger batches of honey who want a compact but professional-quality filtering setup.

Manufactured in Germany by Carl Fritz, a specialist manufacturer of professional beekeeping and honey processing equipment.

A Premium Investment for the Hobby Beekeeper

Unlike basic plastic or nylon strainers, the Carl Fritz Special Series system is built to last for decades. It offers consistent filtration quality, superior hygiene, and reliable performance, making it a long-term investment for beekeepers producing honey for home use, gifting, or direct sales.

If you are looking for a professional-grade honey filtering system with the reliability and craftsmanship of German engineering, this Carl Fritz Special Series bundle is an outstanding choice.
