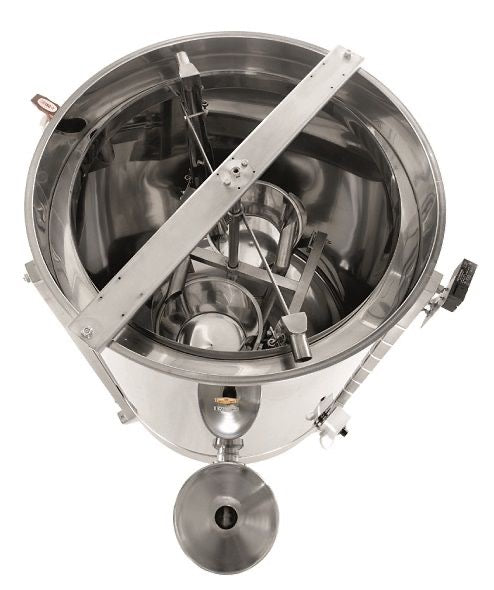

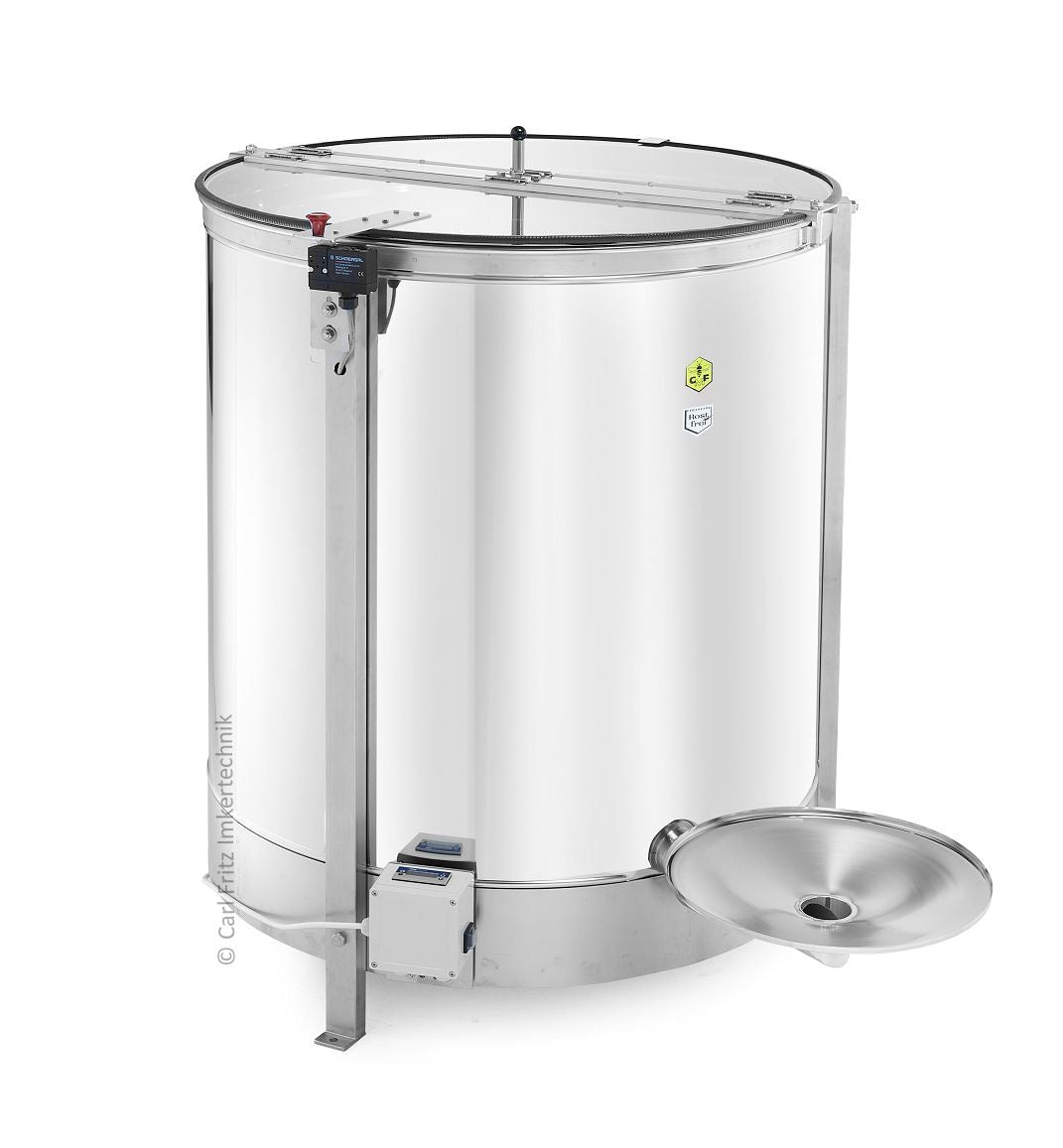

Carl Fritz CFM High Capacity Honey & Wax Separator – Professional Continuous Processing System
Carl Fritz CFM High Capacity Honey & Wax Separator – Professional Continuous Processing System
Carl Fritz CFM High Capacity Honey & Wax Separator – Professional Continuous Processing System
Carl Fritz CFM High Capacity Honey & Wax Separator – Professional Continuous Processing System

Carl Fritz CFM High Capacity Honey & Wax Separator – Professional Continuous Processing System

£ Contact for Best Price

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

  • Processes up to 300kg of honey and wax per hour



With a processing capacity of approximately 300 kg per hour, the CFM Separator significantly reduces labour, improves honey recovery from cappings, and streamlines the entire extraction process during busy harvest periods.

Key Benefits

Product Information

The CFM Honey & Wax Separator is designed to process uncapping wax and honey mixtures quickly and efficiently. The separation process uses centrifugal force to extract honey from wax without the need for additional filtration equipment. This results in cleaner processing, reduced downtime, and improved efficiency throughout the honey house.

Its large-capacity design makes it ideal for commercial and semi-commercial beekeeping operations processing significant volumes of honey throughout the season.

Technical Specifications

Specification Details
Product Name CFM Honey & Wax Separator
Product Number 5000170
Manufacturer Carl Fritz Mellrichstadt (CFM)
Country of Manufacture Germany
Material Food-Grade Stainless Steel
Processing Capacity Approx. 300 kg/hour
Operating System Continuous Operation
Separation Method Centrifugal Force
Speed Control Manual Variable Speed Controller
Speed Range 0 – 300 RPM
Motor Power 370 W
Voltage 230 V
Motor Cable Length 3 metres
Heating System Integrated Bottom Heating
Heating Power 2000 W
Temperature Range 0°C – 85°C
Internal Tank Diameter 93 cm
Total Height 130 cm
Total Weight Approx. 125 kg
Inlet Height 36 cm
Honey Valve Height Approx. 97 cm from floor
Honey Outlet Upper honey valve for direct tank filling

Technical data supplied by Carl Fritz Mellrichstadt.

Features

Continuous High-Capacity Processing

Designed to process up to 300 kg of honey and wax mixture per hour, making it ideal for large honey harvests and commercial extraction facilities.

Centrifugal Honey Recovery

Separates wax from honey using centrifugal force rather than strainers or filter systems, improving efficiency while reducing maintenance requirements.

Integrated Heating System

The built-in thermostatically controlled base heater can be adjusted from 0°C to 85°C, ensuring optimal flow and separation performance under varying honey conditions.

Direct Extractor Feeding

The 36 cm inlet height allows honey and wax mixtures to feed directly from an extractor into the separator, creating a streamlined extraction workflow.

Direct Filling Into Storage Tanks

The elevated honey outlet valve allows separated honey to flow directly into settling tanks or storage containers without additional pumping equipment.

Ideal For

German Engineering Since 1827

Carl Fritz Mellrichstadt (CFM) is one of Europe's most respected manufacturers of professional beekeeping equipment. Produced in Germany using premium European materials, CFM equipment is renowned for its durability, precision engineering, and long service life in demanding commercial environments.

Product Number

5000170

Availability

This item is supplied directly from Carl Fritz and is available by special order.

For pricing, lead times, shipping quotations, or complete honey house design advice, please contact our team.

Professional beekeeping equipment supplied throughout the UK by Gwenyn Gruffydd.

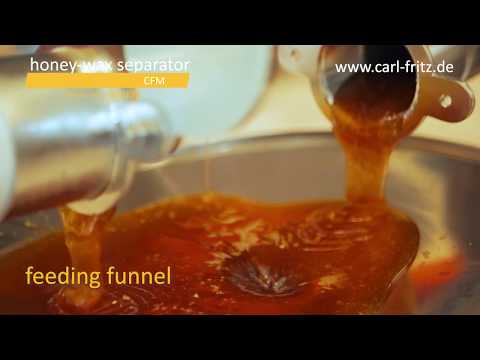

Watch our product video by following this link https://youtu.be/BrZhmieDmeA
