Quarti Extractor Electrification Kit – Motor Upgrade Kit for 12 Frame Manual Honey Extractor

Convert your existing Quarti 12 Frame Manual Radial Honey Extractor from hand-powered to fully electronic motorised operation with this genuine Quarti Italy electrification kit.

Designed specifically as an upgrade for our Quarti 12 Frame Manual Radial Honey Extractor, this complete conversion kit allows you to electrify your existing manual extractor rather than replacing the entire machine.

The kit combines Quarti's advanced Series 500 electronic extractor motor with electric safety lid lock with the required polycarbonate extractor lid, providing the principal components needed to convert the compatible manual extractor to powered operation.

Manufactured in Italy by Quarti, the electronic motor offers both manual and programmable automatic extraction, variable speed control and direction reversal – a significant upgrade for beekeepers processing increasing quantities of honey.

Upgrade Your Existing Manual Extractor

If you originally purchased the Quarti 12 Frame Manual Radial Honey Extractor but your honey production has since increased, this kit provides a cost-effective upgrade path.

Rather than replacing a perfectly good stainless steel extractor, the manual drive can be upgraded to Quarti's electronic motor system.

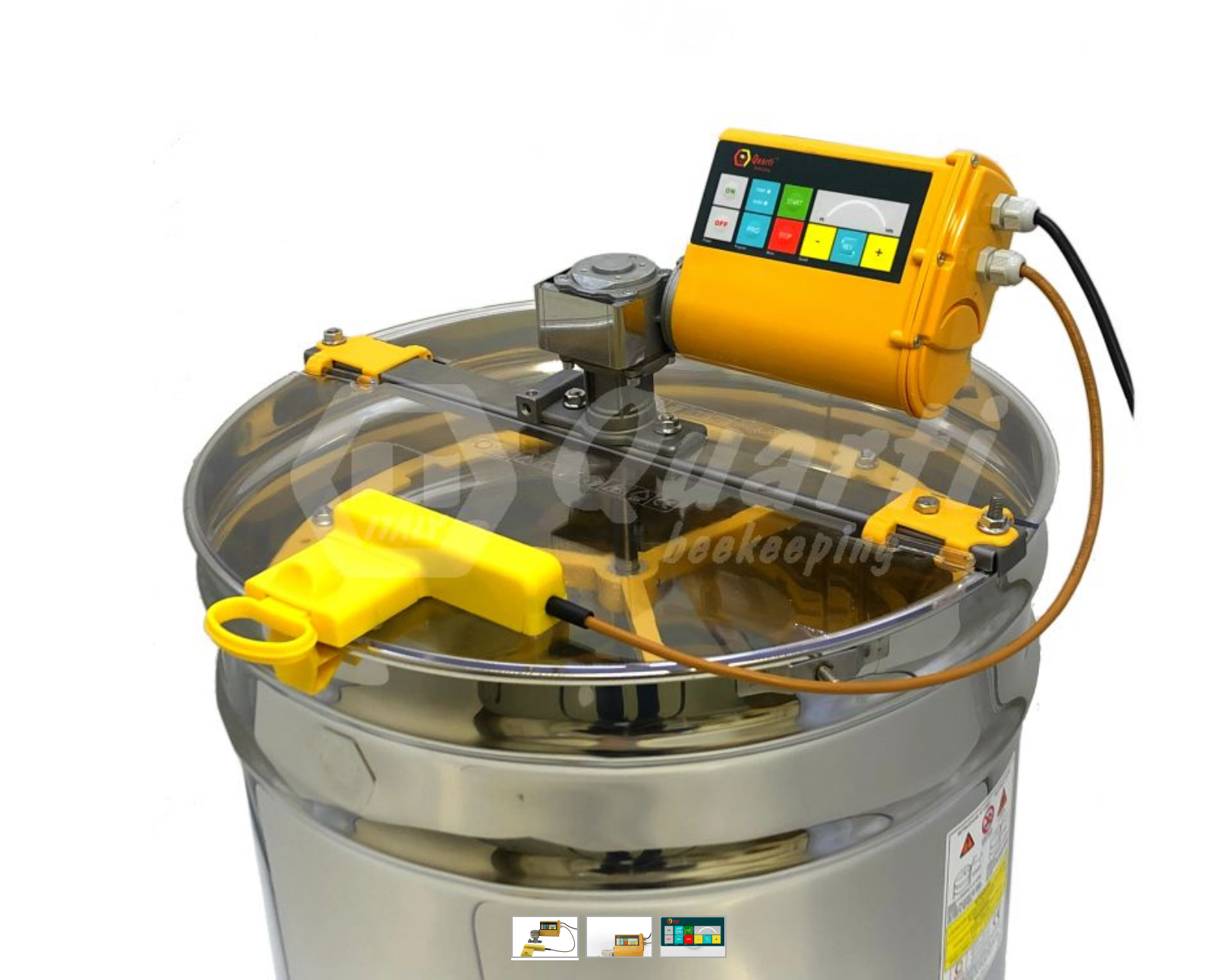

Once converted, the motor takes care of rotating the basket, reducing the physical effort involved in extracting multiple batches of honey and allowing much greater control over the extraction cycle.

IMPORTANT – COMPATIBILITY: This electrification kit is specifically supplied for the Quarti 12 Frame Manual Radial Honey Extractor sold by Gwenyn Gruffydd. It is not a universal extractor motor conversion kit and compatibility with other makes, models or sizes of honey extractor cannot be guaranteed.

Quarti Series 500 Electronic Motor

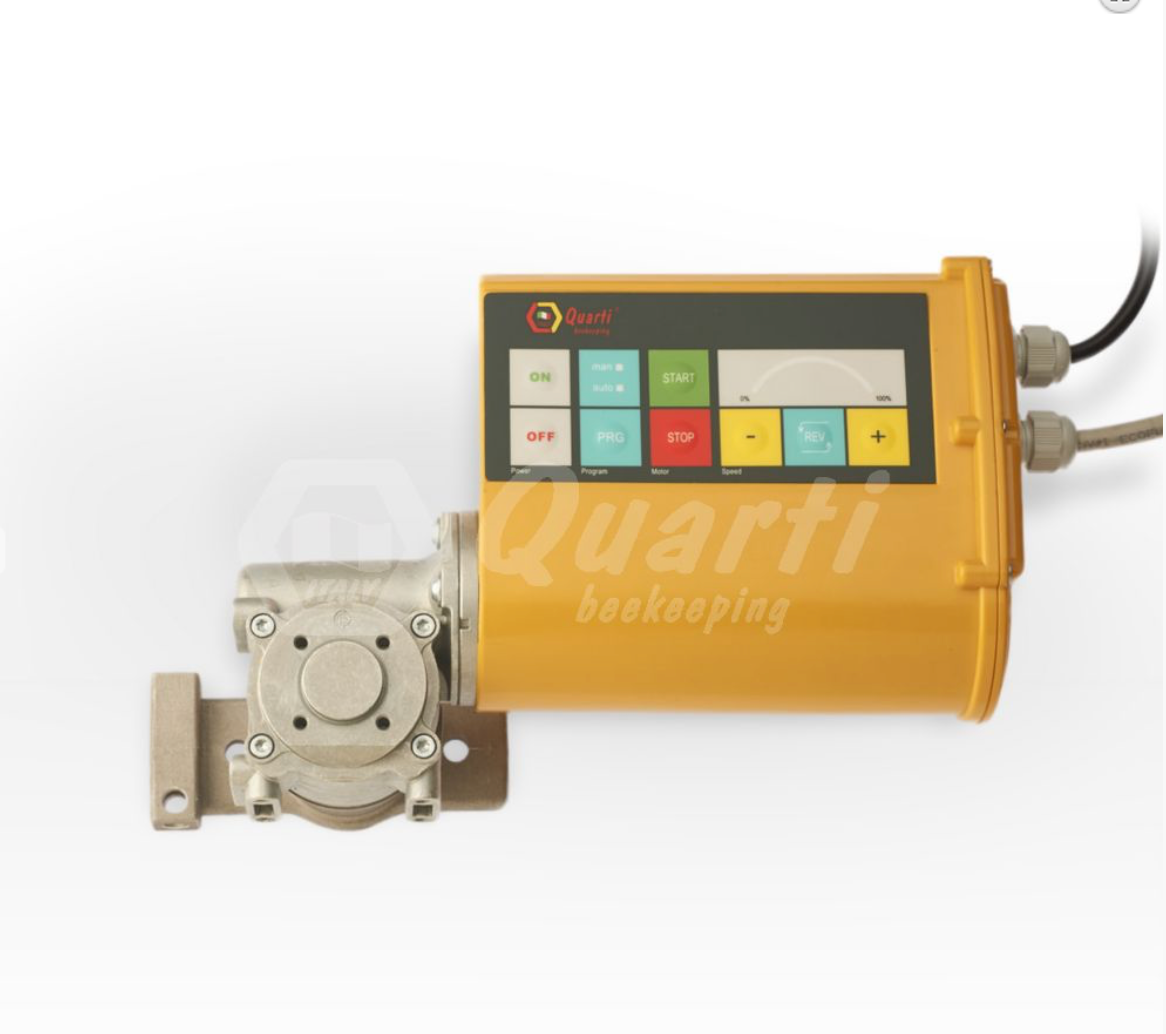

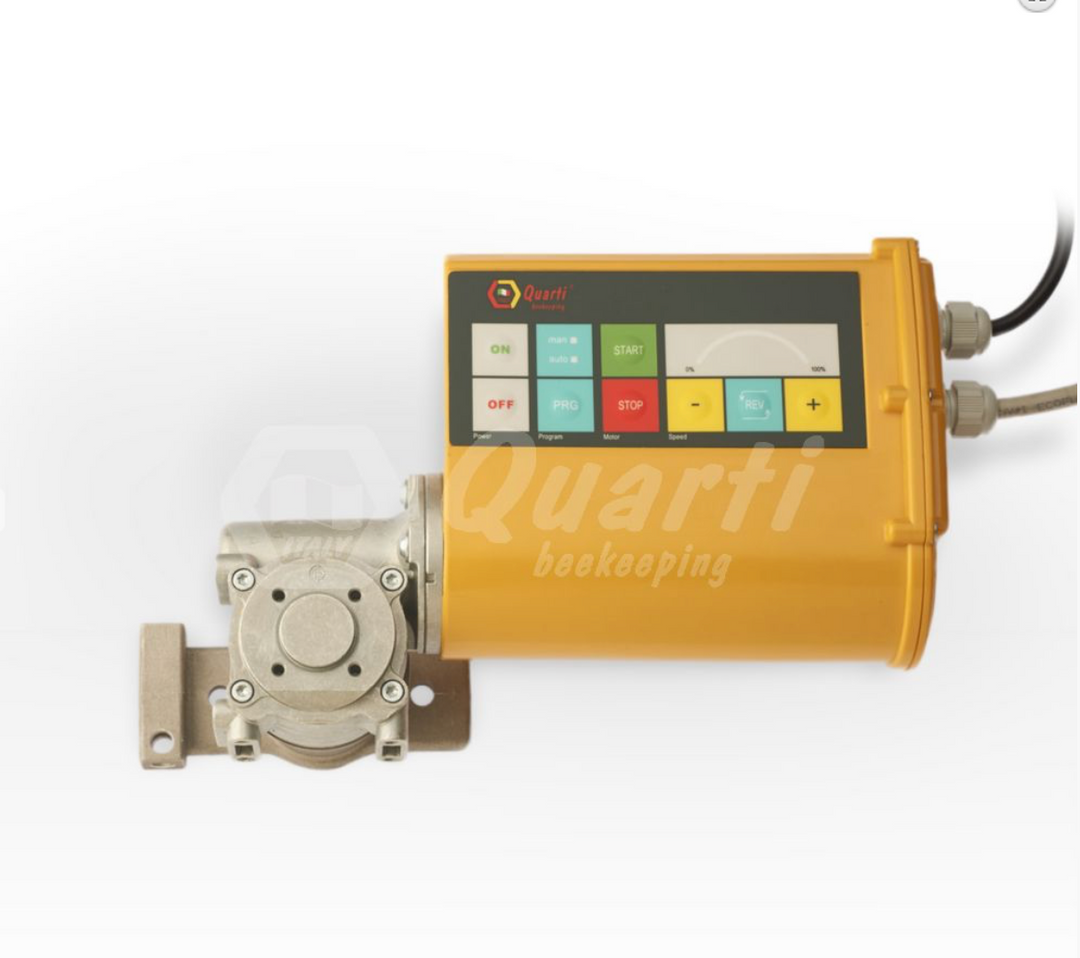

At the heart of the conversion kit is Quarti's sophisticated Series 500 electronic extractor motor (S134C80).

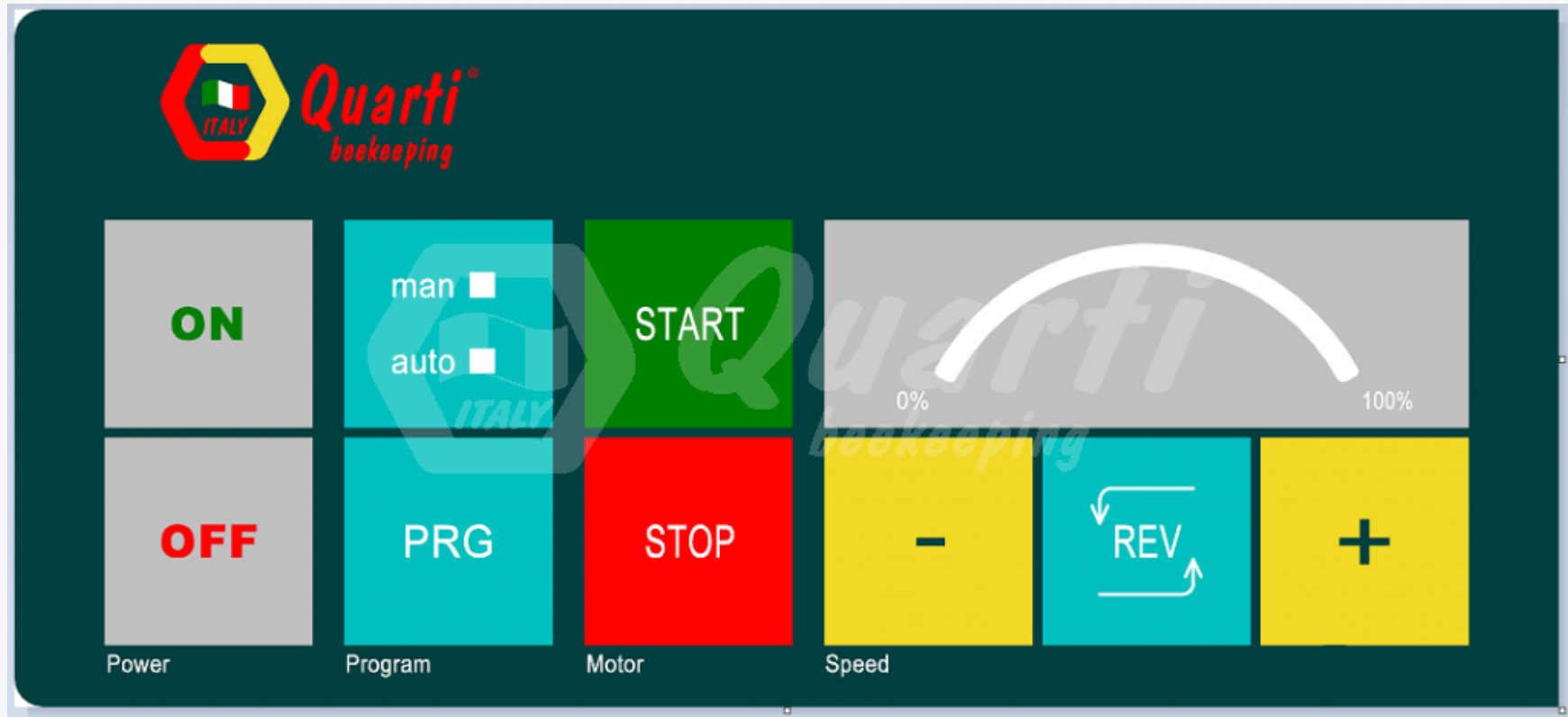

The electronic membrane control panel provides a choice of manual or automatic operation.

Manual Operation

In manual mode you can control:

• Start / Stop
• Increase or decrease the extraction speed
• Reverse the direction of rotation

This gives you direct control over the extractor throughout the extraction process.

Programmable Automatic Operation

For larger harvests and repeated extraction cycles, the motor can also be operated automatically.

The electronic control system features two programmable memories, allowing extraction cycles to be configured and memorised for subsequent use.

This makes it possible to establish an extraction programme and then repeat it across successive loads, reducing the amount of manual intervention required during a busy honey harvest.

Electric Safety Lid Lock

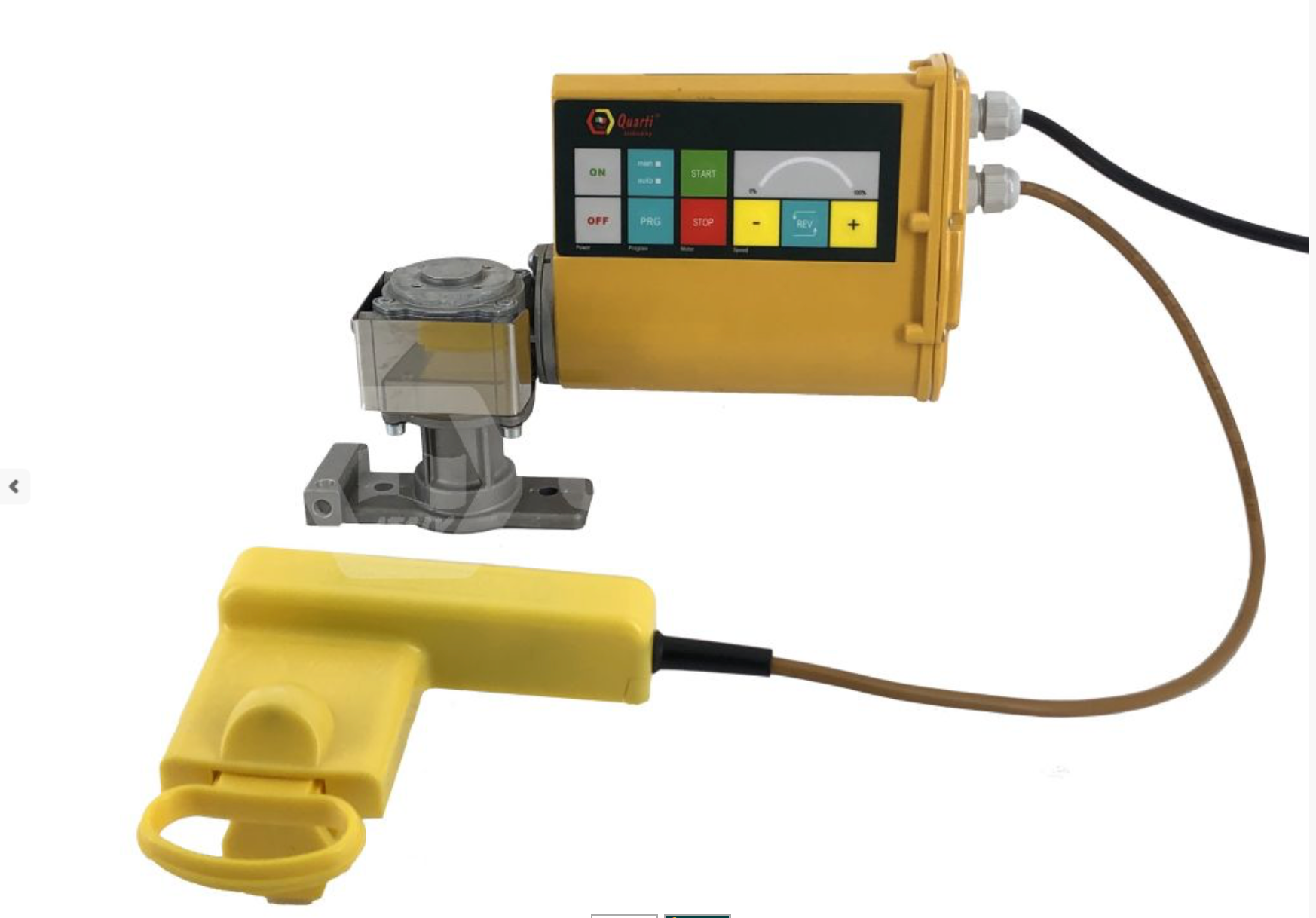

The S134C80 motor incorporates Quarti's electric lid safety locking system.

This is an important part of converting the manual extractor to powered operation, providing the appropriate safety mechanism for the lid when the extractor is being operated electrically.

The kit therefore includes the compatible polycarbonate lid required as part of the conversion.

What's Included in the Electrification Kit?

1 × Quarti Series 500 Electronic Extractor Motor with Safety Lid Lock – S134C80

• Electronic membrane control panel
• Manual and automatic operation
• Start / stop control
• Variable speed control
• Direction reversal
• Two programmable extraction memories
• Illuminated operating indicators
• Electric lid safety lock
• Die-cast aluminium motor support
• 230V
• 150W
• 50/60Hz
• Maximum motor speed: 450 rpm
• Protection rating: IP20
• Approximate motor weight: 3.1kg

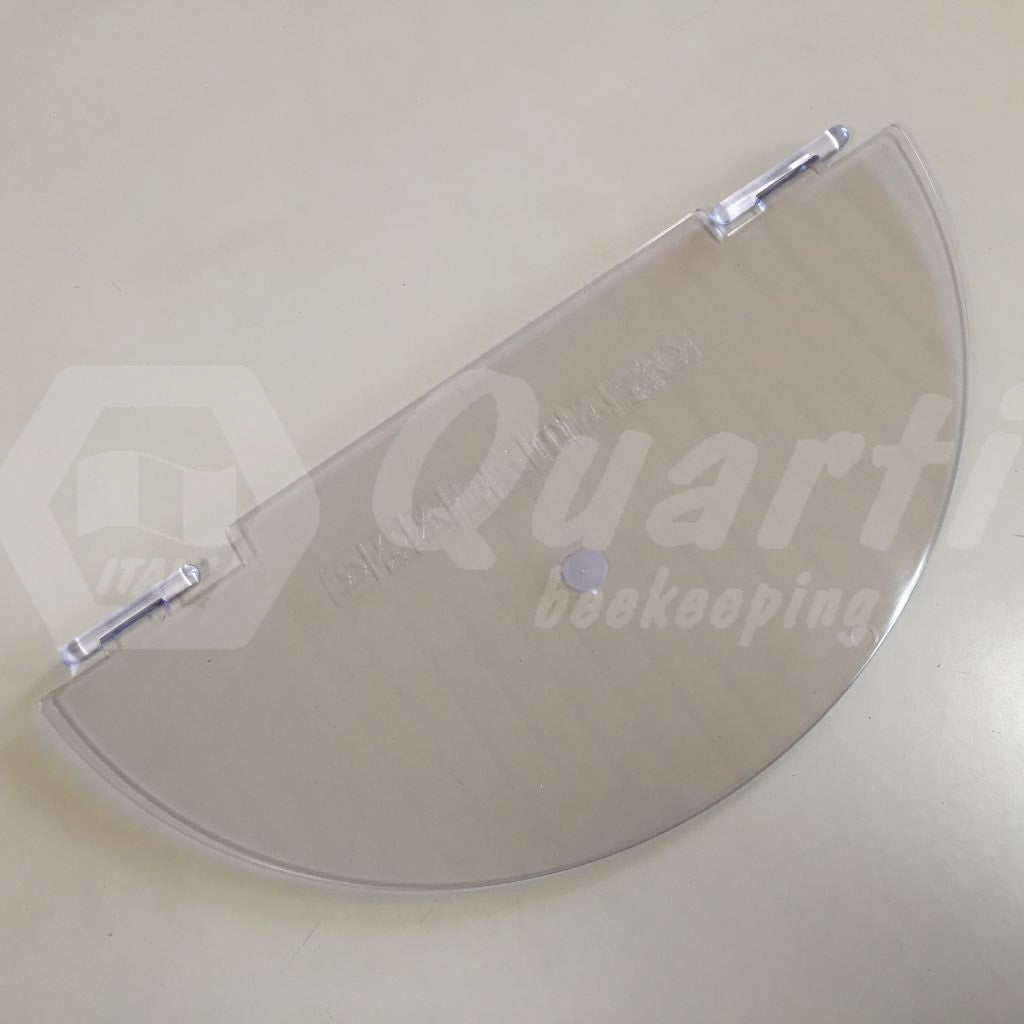

1 × Quarti Polycarbonate Extractor Lid – C18M

• Genuine Quarti replacement extractor lid
• Transparent polycarbonate
• Designed for the compatible Ø525mm extractor
• Required as part of the manual-to-electric conversion

Why Electrify Your Manual Honey Extractor?

Hand-powered extraction is perfectly suitable for smaller honey harvests, but as colony numbers and honey production increase, manually turning load after load can become time-consuming and physically demanding.

Electrifying an existing extractor gives you many of the advantages of a purpose-built motorised machine without having to replace the complete stainless steel extractor.

The programmable Quarti motor also offers considerably more control than simply adding basic powered rotation. Variable speed, direction reversal and programmable extraction cycles allow the extraction process to be adapted to the honey and frames being processed.

Compatibility

Compatible ONLY with our Quarti 12 Frame Manual Radial Honey Extractor.

This kit has been put together specifically to electrify the Quarti 12-frame manual extractor available from Gwenyn Gruffydd.

Please do not purchase this kit for a different extractor without contacting us first. It should not be assumed to fit other Quarti extractors, or honey extractors manufactured by other brands.

Technical Specification

• Manufacturer: Quarti Italy
• Motor model: Series 500 Electronic
• Motor product code: S134C80
• Lid product code: C18M
• Voltage: 230V
• Power: 150W
• Frequency: 50/60Hz
• Motor speed: up to 450 rpm
• Motor protection rating: IP20
• Motor weight: approx. 3.1kg
• Controls: Electronic membrane control panel
• Operating modes: Manual & automatic
• Programmable memories: 2
• Rotation: Forward & reverse
• Safety system: Electric lid lock
• Lid material: Polycarbonate
• Compatible extractor diameter: Ø525mm
• Manufactured in: Italy

Italian-Made Upgrade for Your Quarti Extractor

Quarti equipment is designed and manufactured in Italy specifically for beekeeping and honey processing.

This genuine Quarti conversion kit provides owners of the compatible 12 Frame Manual Radial Honey Extractor with a straightforward upgrade path as their apiary and honey harvest grow.

Instead of replacing your extractor, electrify it – adding programmable motorised extraction, variable speed control, rotation reversal and an electric lid safety system to the equipment you already own.
