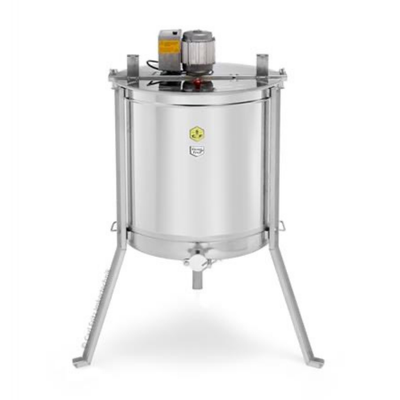

Carl Fritz Radial Extractor 12 shallow frames with "Whispering Witch"

Carl Fritz 12 Frame Radial Extractor with whispering witch motor

The smallest of our Carl Fritz (CFM) Honey radial extractors with "Whispering Witch”

Why "Whispering"? Because this drive is amazingly quiet even at full speed.

In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?

This extractor is equipped with a honey tap and has two practical handles at the tank.

For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.

Suitable for:

• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width

• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames, National (excluding manley)

• Direct drive with security switch

• Motor power 40 W / 230 V

• Very quiet drive even at full speed

• Speed control 80 - 350 rpm

• Hinged acrylic glass lid halves

• Inner tank Ø 55 cm, welded bottom without gap

• Tank bottom with slope to the outlet

• Outlet: 1 1/2" honey tap, welded at bottom level

• Handles at the lower end of the tank

• Radial cage for 12 shallow frames

• Material: Edelstahl-Rostfrei

• Loading height: 100 cm

• Total height: 115 cm

• Distance from floor to the tap 38 cm

• Can be modified to extract tangential

Included in the delivery:

1 pack with hexagonal screws and nuts for the feet, one socket wrench no.13 and a yellow sealant for the bottom bearing.
