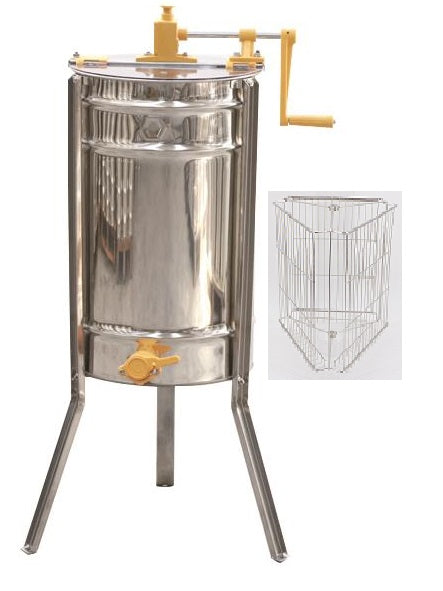

3 Frame Manual Honey Extractor for Langstroth Frames - Stainless Steel Body & Gears

Quarti 3 Frame Manual Tangential Honey Extractor – Langstroth | S19

A compact, high-quality manual honey extractor from Quarti Italy, designed for Langstroth frames and ideal for hobby beekeepers and smaller apiaries.

Unlike some entry-level manual extractors which use plastic gearing, the Quarti S19 features steel gears engineered for smooth, reliable performance and long-term durability. Combined with its stainless-steel construction and controlled manual drive, this is a well-built extractor designed to provide dependable service season after season.

The S19 holds 3 Langstroth frames tangentially and has a compact 370mm diameter drum, making it an excellent choice where you want a quality extractor without the size or cost of a larger-capacity machine.

Key Features

• Steel gears – engineered for smooth, reliable performance and greater durability than plastic gearing

• 3-frame tangential extractor for Langstroth frames

• Manual transmission with integrated brake for controlled extraction

• Clockwise-only rotation for safe, controlled operation

• 370mm diameter – compact and easy to store

• Stainless-steel basket

• Stainless-steel legs for a stable working platform

• Transparent polycarbonate lid – monitor frames during extraction

• CE-certified for compliance and safety

• Manufactured in Italy by Quarti

• Quarti product code: S19

Built to Last – Steel Gearing

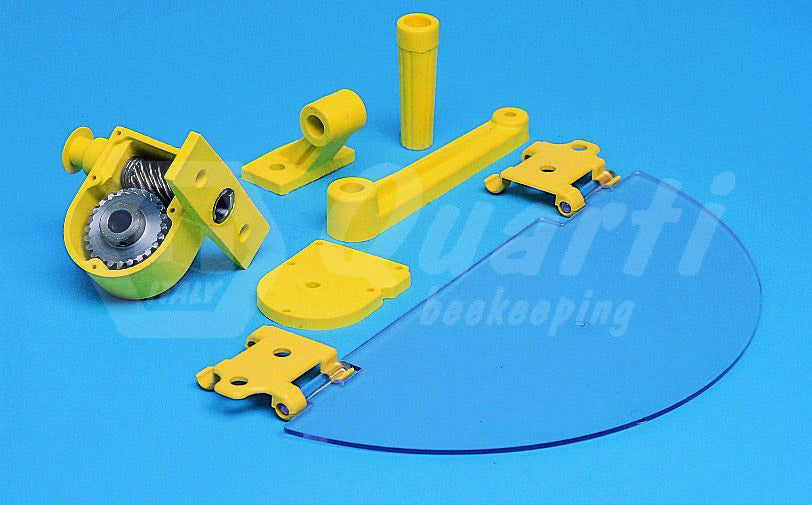

One of the key differences between the Quarti S19 and some cheaper manual honey extractors is its steel gear mechanism.

Controlled Manual Extraction

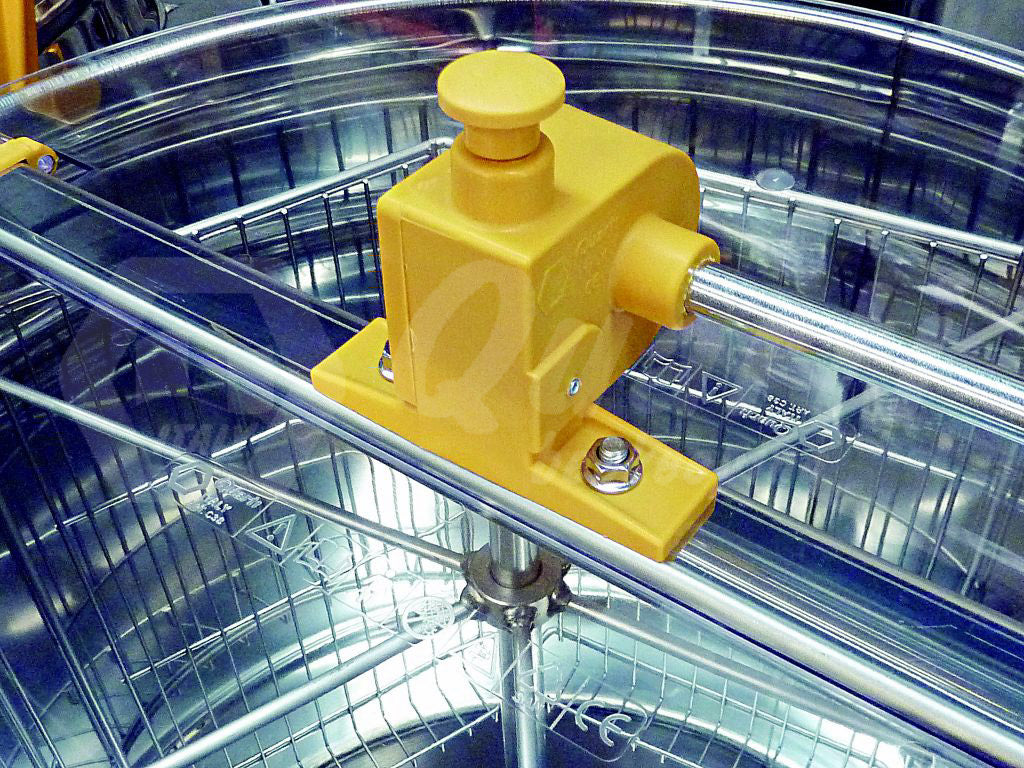

The manual transmission incorporates an integrated brake and clockwise-only rotation, giving you greater control over the extraction process.

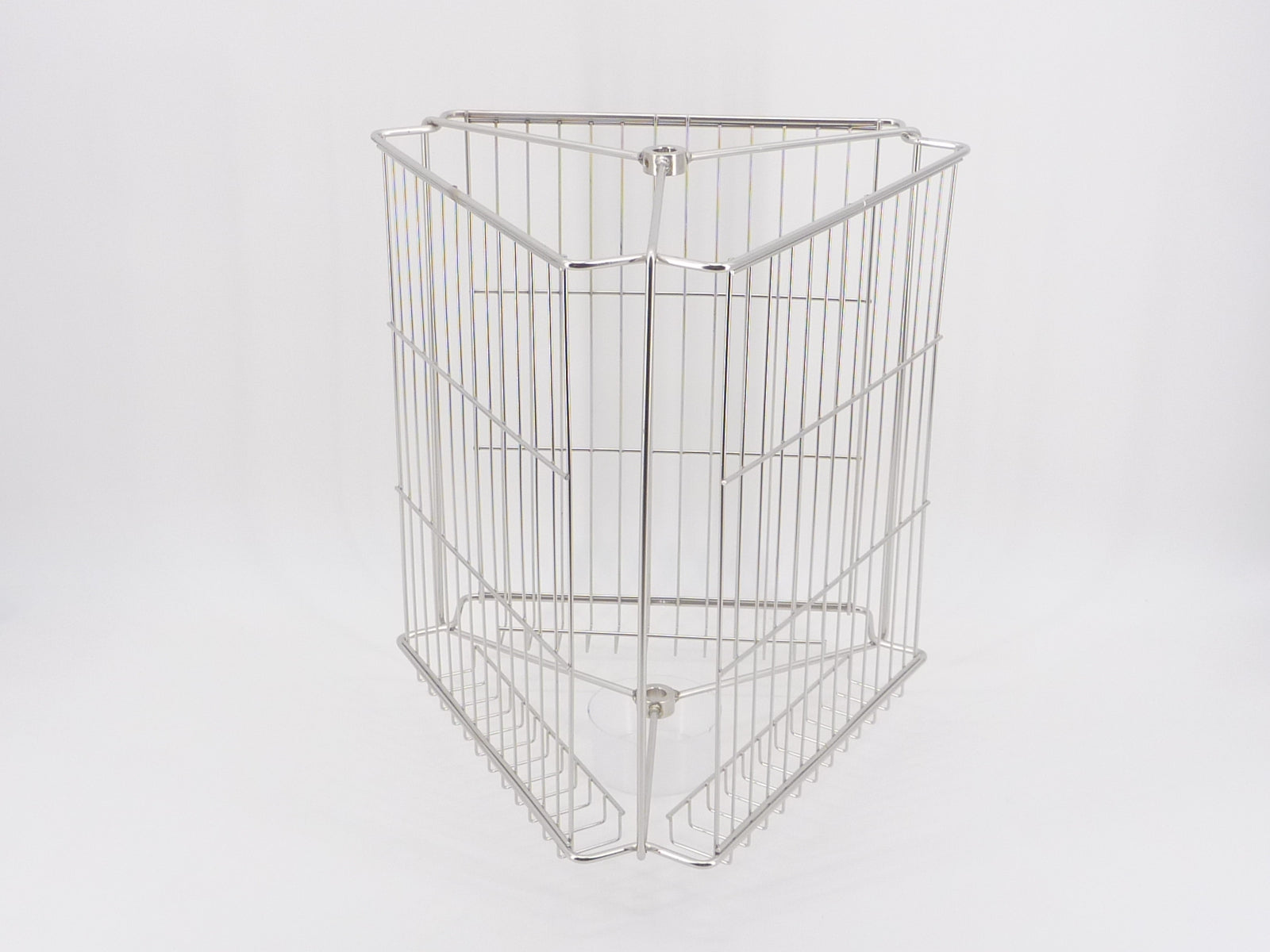

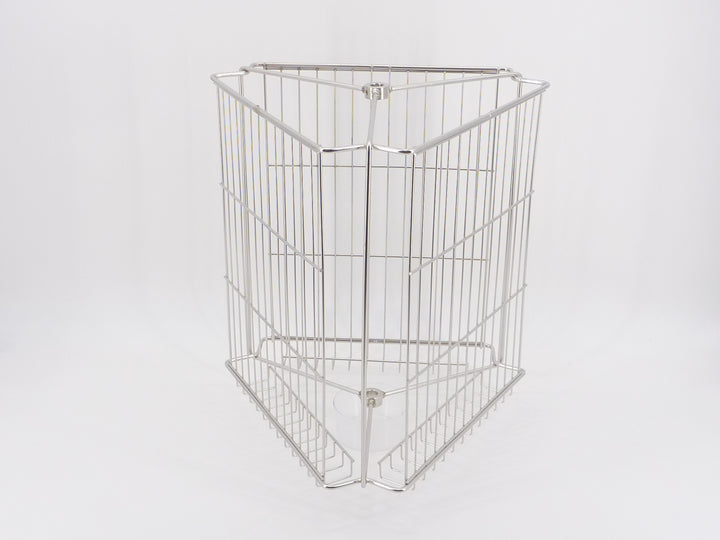

The tangential basket holds three Langstroth frames, with one face of the comb positioned towards the outside of the drum. Extract one side before turning the frames to extract the opposite side.

This simple system makes the S19 particularly well suited to beekeepers processing smaller batches of honey.

Ideal For

• Hobby and small-scale beekeepers

• Langstroth hive users

• Beekeepers buying their first honey extractor

• Smaller honey harvests

• Anyone looking for a compact extractor that's easy to store

• Beekeepers looking for a better-built alternative to basic entry-level extractors with plastic gearing

For larger apiaries and higher-volume honey extraction, explore our range of larger manual and electric honey extractors.

Specification

Manufacturer: Quarti
Model: S19
Type: Manual tangential honey extractor
Capacity: 3 Langstroth frames
Drum diameter: 370mm
Gearing: Steel
Rotation: Clockwise only
Brake: Integrated
Basket: Stainless steel
Legs: Stainless steel
Lid: Transparent polycarbonate
Certification: CE
Country of manufacture: Italy
