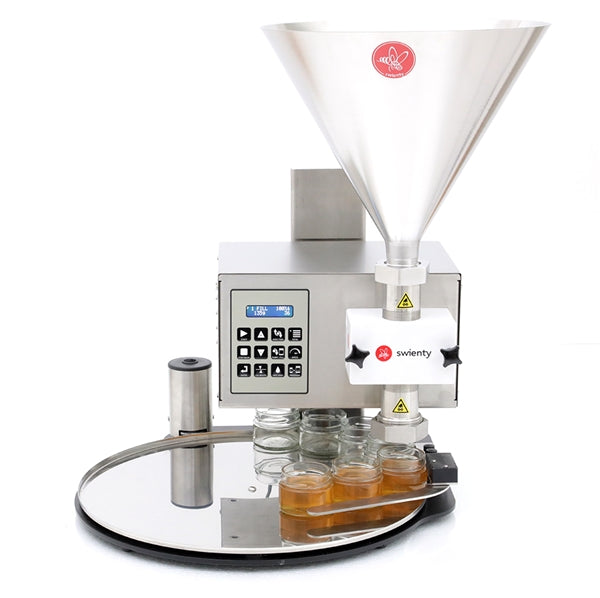

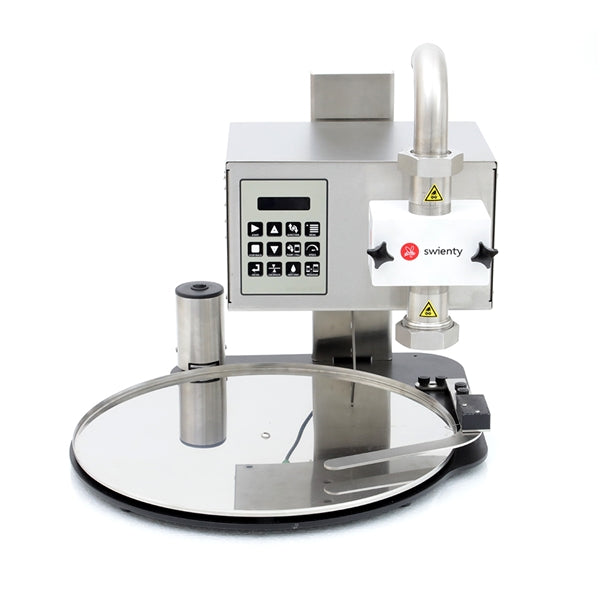

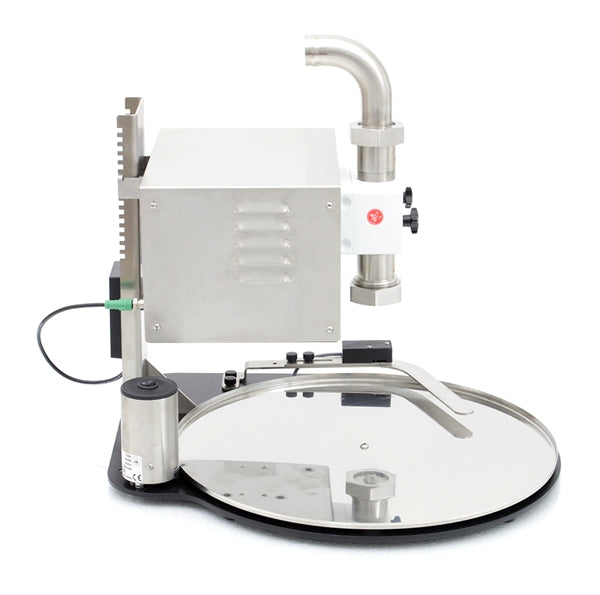

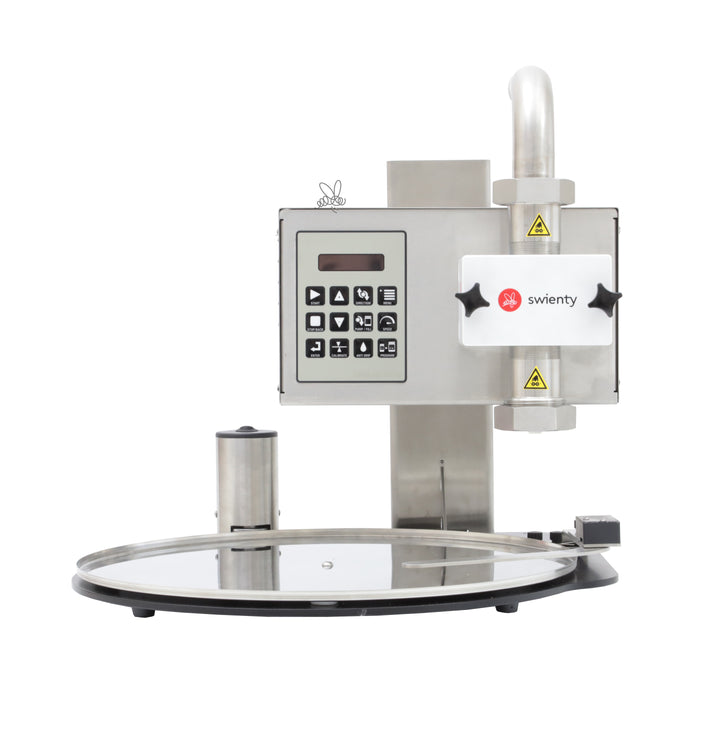

Honey Filling Bottling station ø45 - Table model
The smallest filling station produced by Swienty where DANA api MATIC 1000 is combined with a Ø45 turntable.
The DANA api MATIC 1000 is a filling machine with a gear pump. A strong low voltage DC motor drives the gear pump with the help of a helical gear box. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.
The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
The machine works precisely and is easy to program for different substances. As a pump, the machine works both ways and can be set to different speeds.
All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.
Included fitting:
Counterflow valve
Dosing syringe 0-60 ml
Nut for BS fitting 1½"
Complete cut-off-cross ø20
1½" / 38mm hose
110110A 1½" bent BS fitting
1½" Hose-clamp
(Hopper must be ordered separately)
With the machine you receive an included spare parts set containing:
2 x 110065D Cross-cut Ø20
2 x 110072 Black rubber diaphragm
2 x 500212 Gasket BS 1½
2 x 502740 Handmountable nuts for pumphead
2 x 508037 O-ring 37x2 NBR 70
1 x 508082 O-ring 82x2 NBR 70
Various nozzles, fittings, 10 litre funnel, floor stand and switch can be purchased separately.
