Honey Bottling Filling DANA api MATIC 1000 Station 70cm Turn Table by Swienty

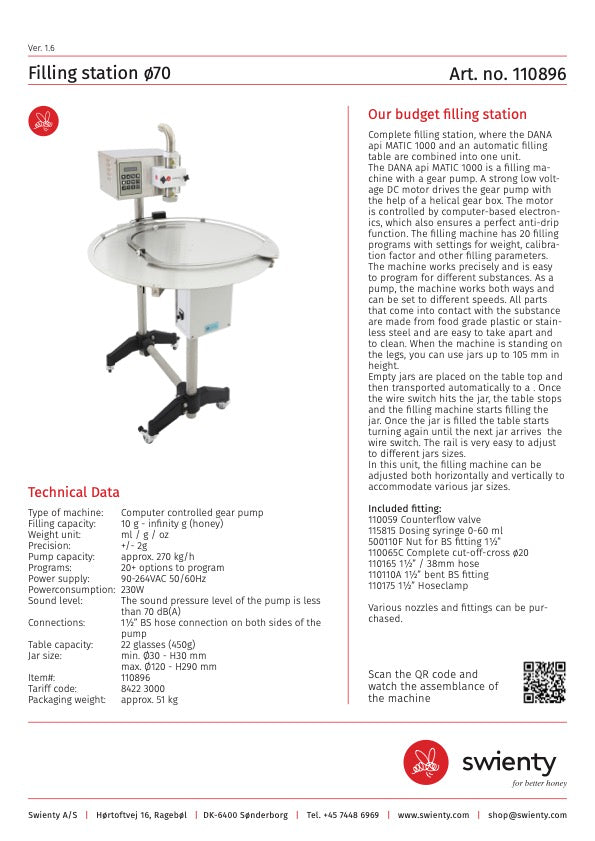

Honey Filling Bottling station ø70

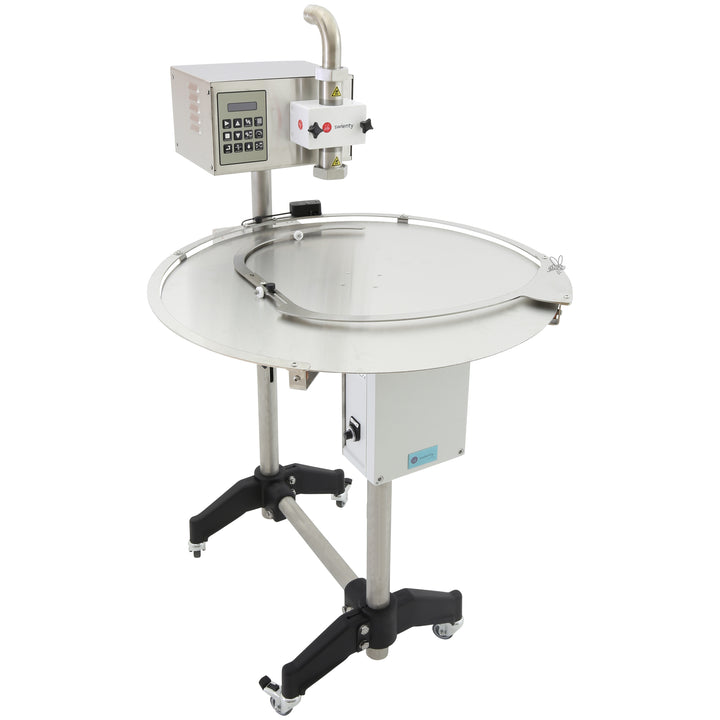

The smallest filling station produced by Swienty where DANA api MATIC 1000 is combined into one unit.
The DANA api MATIC 1000 is a filling machine with a gear pump. A strong low voltage DC motor drives the gear pump with the help of a helical gear box. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.
The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
The machine works precisely and is easy to program for different substances. As a pump, the machine works both ways and can be set to different speeds.
All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.

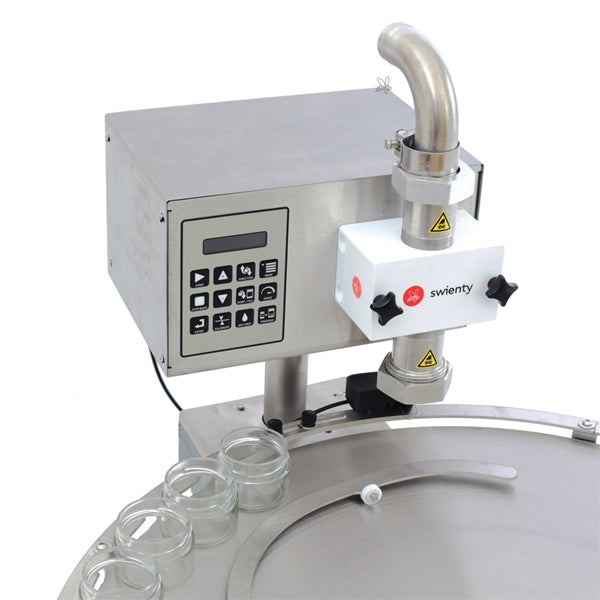

Empty jars are placed on the table top and then transported automatically through a rail to a wire switch. Once the jar hits the wire switch, the table stops and the filling machine starts filling the jar. Once the jar is filled the table starts turning again until the next jar arrives the wire switch. The rail is very easy to adjust to different jars sizes.
In this unit, the filling machine can be adjusted both horizontally and vertically to accommodate various jar sizes.
This product needs to be assembled before use.
An assembly manual is included, and assembly typically takes about 30 minutes.
Included fitting:
110075 Foot pedal
110059 Counterflow valve
115815 Dosing syringe 0-60 ml
500110F Nut for BS fitting 1½"
110065C Complete cut-off-cross ø20
110046 Legs
110165 1½" / 38mm hose
110110A 1½" bent BS fitting
110175 1½" Hoseclamp
With the machine you recieve an included spare parts set containing:
2 x 110065D Cross-cut Ø20
2 x 110072 Black rubber diaphragm
2 x 500212 Gasket BS 1½
2 x 502740 Handmountable nuts for pumphead
2 x 508037 O-ring 37x2 NBR 70
1 x 508082 O-ring 82x2 NBR 70
Various nozzles and fittings can be purchased separately.
