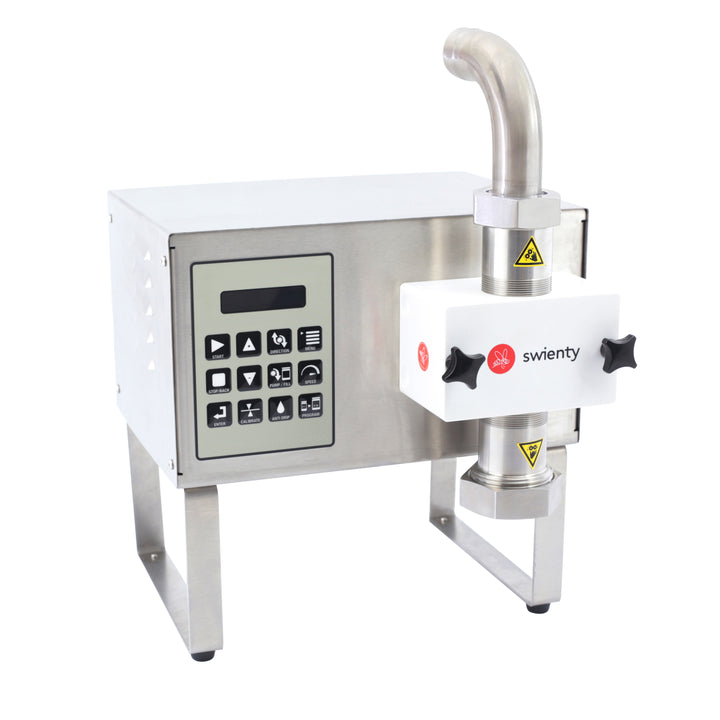

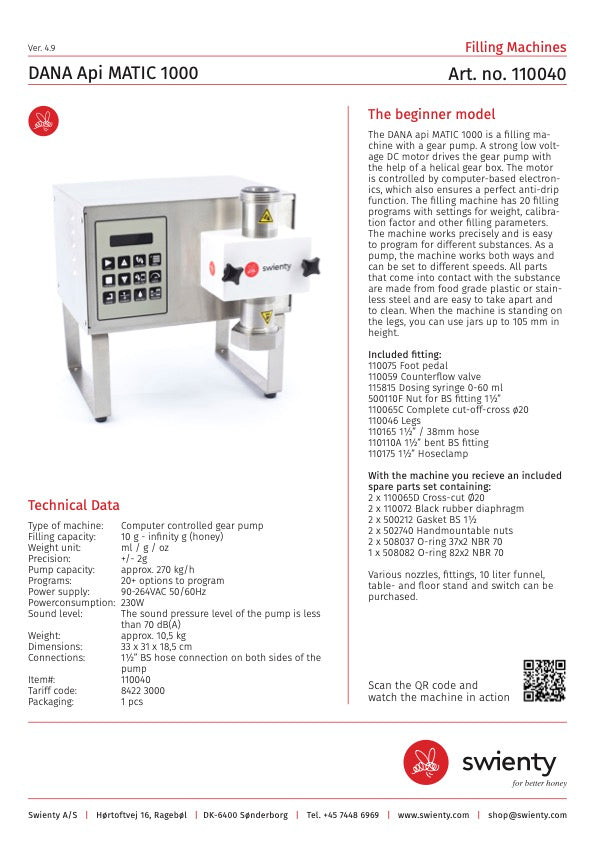

DANA api MATIC 1000 Honey Filling Bottling Machine by Swienty

The beginner model from Swienty

The DANA api MATIC 1000 is a honey bottling machine with a gear pump.

This honey filling machine has a strong low voltage DC motor drives the gear pump with the help of a helical gear box. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.

The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters. The machine works precisely and is easy to program for different substances.

As a pump, the machine works both ways and can be set to different speeds.

All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean. When the machine is standing on the legs, you can use jars up to 105 mm in height.

Included fitting:
110075 Foot pedal
110059 Counterflow valve
115815 Dosing syringe 0-60 ml
500110F Nut for BS fitting 1½"
110065C Complete cut-off-cross ø20
110046 Legs
110165 1½" / 38mm hose
110110A 1½" bent BS fitting
110175 1½" Hoseclamp

With the machine you recieve an included spare parts set containing:
2 x 110065D Cross-cut Ø20
2 x 110072 Black rubber diaphragm
2 x 500212 Gasket BS 1½
2 x 502740 Handmountable nuts for pumphead
2 x 508037 O-ring 37x2 NBR 70
1 x 508082 O-ring 82x2 NBR 70

Various nozzles, fittings, 10 litre funnel, table- and floor stand and switch can be purchased separately.
